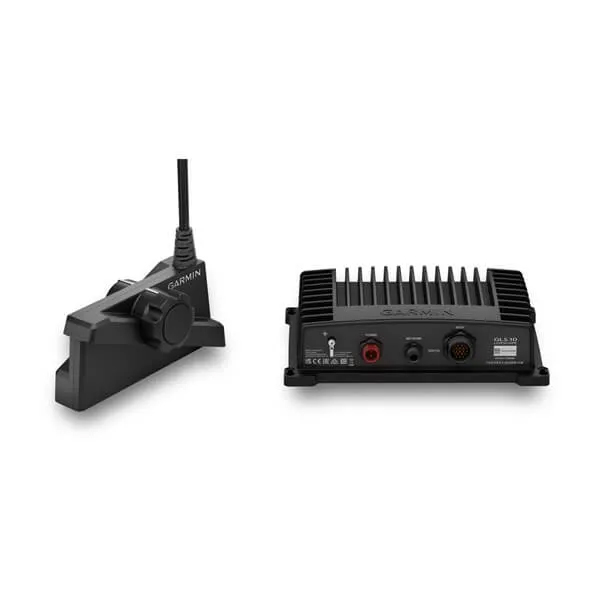

Garmin LiveScope Plus System With GLS 10 and LVS34 Transducer
THE BEST OF THE BEST JUST GOT BETTER
The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
See images clearly with improved screen clarity, transducer sensitivity and target separation.
Scan surroundings with sharper images, reduced noise and fewer sonar artifacts.
Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just a new transducer.
Get maximum contrast and clarity in your images with vivid color palettes.
Don’t miss a thing with supported Forward, Down and Perspective modes and necessary mount.
General |
|
| DIMENSION |
GLS 10 sonar black box: 9.7” x 5.9” x 2.6” (24.5 x 14.9 x 6.5 cm); LVS34 transducer: 6.4” x 3.1” x 1.9” (16.2 x 7.8 x 4.8 cm) |
|---|---|
| WEIGHT |
GLS 10 sonar black box: 4.3 lbs (2.0 kg) |
| WATERPROOF | IPX7 |
| TRANSDUCER BEAMWIDTH | 20° x 135° |
| TRANSDUCER CABLE LENGTH | 20 ft |
| TRANSDUCER NUMBER OF PINS | 21 |
| TEMPERATURE RANGE |
GLS 10 Black Box: Operating: -15 C to 70 C Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C |
Sonar Features & Specifications |
|
| FREQUENCY | 530 - 1,100 kHz |
|---|---|
| MAXIMUM DEPTH | Down and Forward: 200’ (61.0 m) |
| SONAR TYPE | Live |
| TARGET SEPARATION @100' | 14" |
| PERSPECTIVE MODE MOUNT INCLUDED | |
Connections |
|
| GARMIN MARINE NETWORK PORTS |
1 (small connector) |
|---|---|
Electrical Features |
|
| POWER INPUT | 10-32 V |
|---|---|
| POWER USAGE | 21 W typical, 58 W max |
| TRANSMIT POWER | 500 W |
| FUSE | 7.5 A |
| COMPASS-SAFE DISTANCE | 4" (0.1 m) |
IN THE BOX:
- LiveScope GLS 10 sonar black box
- LiveScope Plus LVS34 transducer
- Perspective mount (LiveScope Plus LVS34 Transducer Only)
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2 meter Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
1 Model Available
| Model | Stock | Price | Qty |
|---|---|---|---|
| 010-02706-00 | Low Stock: <5 | $1699.99 |
